So! first we start with reference material:
Next, the 3D model has to get made, and I've always wanted to try one of the more professional programs, so I downloaded a free trial of 'Autodesk Fusion 360' and got to work:
Man, this isn't a very flattering angle for you, kuria...
Orokitty certainly pulls off the 3/4 look much better!
Have to say, those curves were a pain to get looking right, but it was worth it!
Here we see the 3D print, fresh from the Makerbot at my Library!
As you can see, the kuria's body comes in 2 peices, and the orokitty's head is a completely separate part! This is because I plan on filling their hollow bottoms with sand as a ballast, otherwise they're way too top heavy:
After quite a bit of sanding and cleaning and removing support material, I did a quick dry-fit to make sure everything fits:
The brown stuff is some clay that was lying around that I used to fill in some low spots, Makerbot prints aren't always the best. The ear bits aren't in this one because the pegs I planned on using to attach them to the main body were too thick to fit, yet too thin the reliably sand down, eventually I decided to just snap off the pegs and superglue the ear filly bits directly in there.
Testing wobblyness with the newly weighted bottom:
That done, I spent a couple days getting all the kuria, which led to this discovery:
Who knew the back was so detailed?
Time to get stuff painted! The first two layers is a light grey spraypainted on. Then using a compass, I sketched out the lines for the dark grey lines, and then those got hand-painted on.
The gold stripes were done by simply spraying a little of some gold spraypaint into a dixie cup and using a brush while still wet.
Note: this completely ruined the brush. Use with caution.
A second coat of the darker grey paint was applied to straighten out the lines, and the extraneous bits were spraypainted gold:
And here's the dry fit:
The orokitty got a similar treatment:
The only difference was the halo bits had to be superglued in ahead of time so the joins would blend in better.

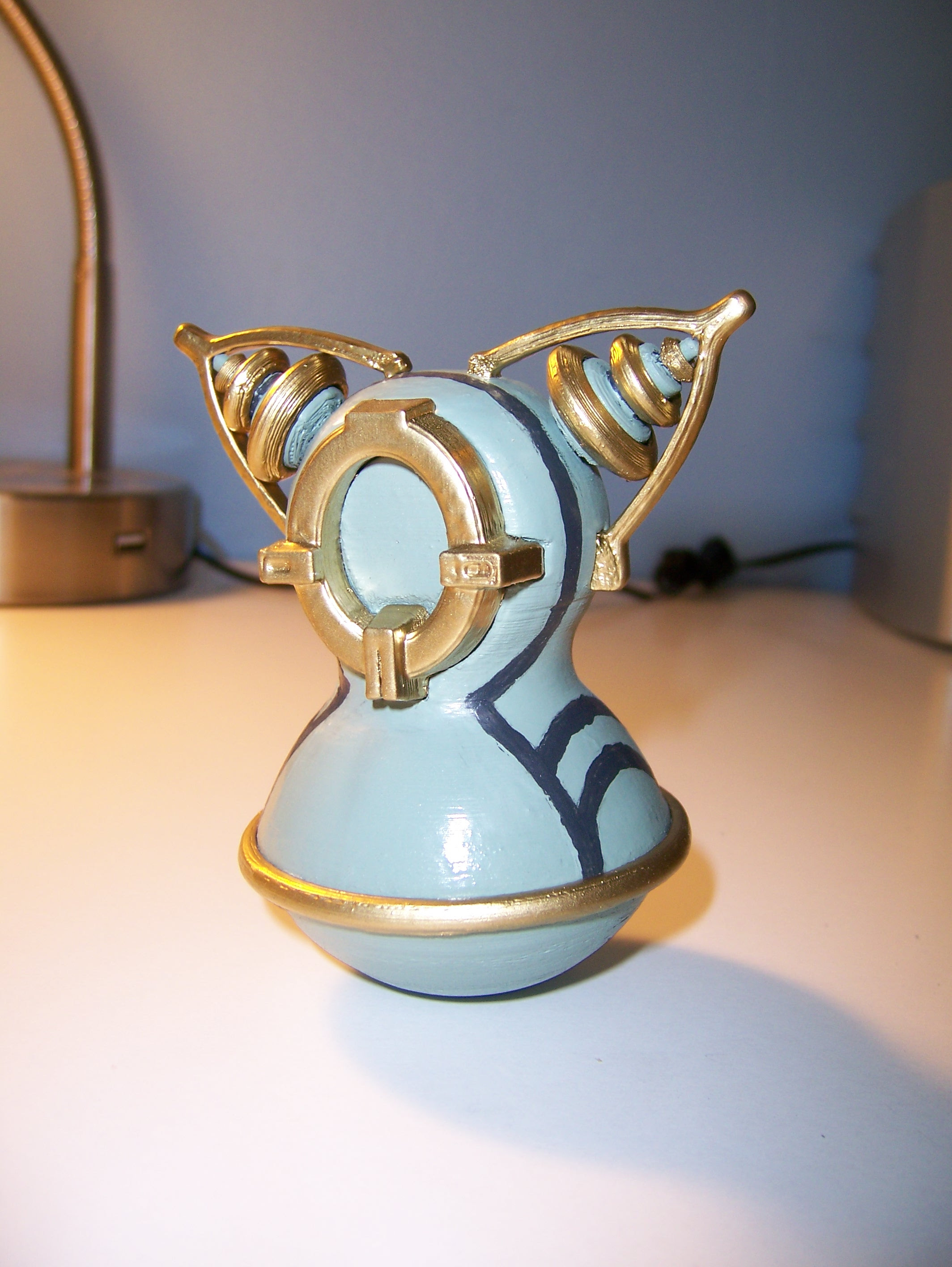

And here's the finished product, hangin out on my desk:
